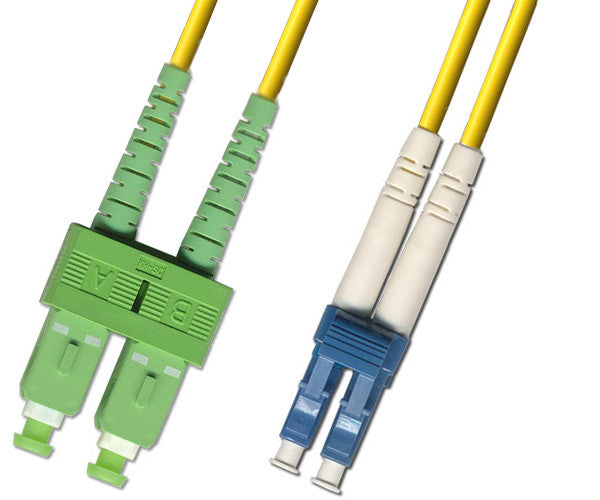

APC/UPC - Singlemode (9/125) - Duplex - Fiber Optic Cable - SC-APC to LC-UPC

Description

• Features:
  • Ceramic ferrules for optimal data transmission
  • Top-Quality Corning glass cores
• Connectors:
  • 2x SC/APC SM Connector
  • 2x LC/UPC SM Connector
• UPC:
• Insertion Loss: ≤ 0.2 dB
• Return Loss: > -55dB
• APC:
• Insertion Loss: ≤ 0.2 dB
• Return Loss: > -65dB
• Core/Cladding Diameter: 9 microns / 125.0 microns
• Material: PVC
• Cable Color: Yellow
• RoHS Compliant

Drawing
